Description
Good Quality desktop 300Mbps Wi-Fi adapter for PC / Laptop; long range strong signal reception
.
FEATURES:
- Upgrade your desktop or laptop with a 300 Mbps Wi-Fi connection to meet all your network needs faster
- Two 5dBi high gain antennas deliver enhanced reception and transmission performance
- With 2×2 MIMO, users can easily access to high-speed wireless connection
- IEEE802.11b, IEEE802.11g, IEEE802.11n standards
- Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption, WEP encryption
- Make use of IEEE 802.11n wireless technology to provide high data rate up to 300 Mbps
- Interoperate with other wireless (802.11b/g/n) products
- Supports automatically adjust to lower speeds due to distance or other operating limitations
- Provides Micro USB 2.0 Interface
- Supports Infrastructure mode
- Good capability on anti-jamming
- Supports roaming between access points when configured in Infrastructure mode
- Supports Windows 10/8.1/8/XP (32/64 bit)
.

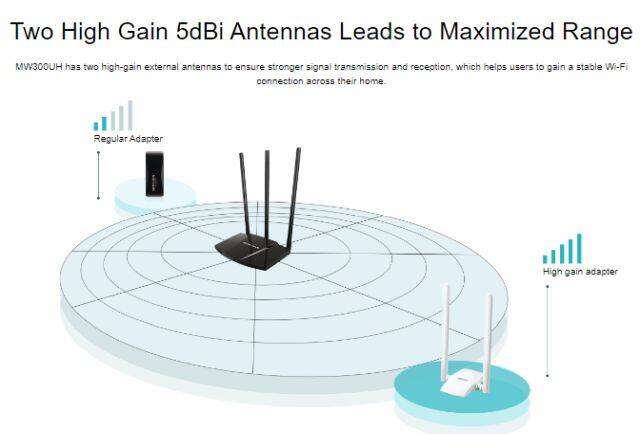

Two High Gain 5dBi Antennas Leads to Maximized Range
MW300UH has two high-gain external antennas to ensure stronger signal transmission and reception, which helps users to gain a stable Wi-Fi connection across their home.
.

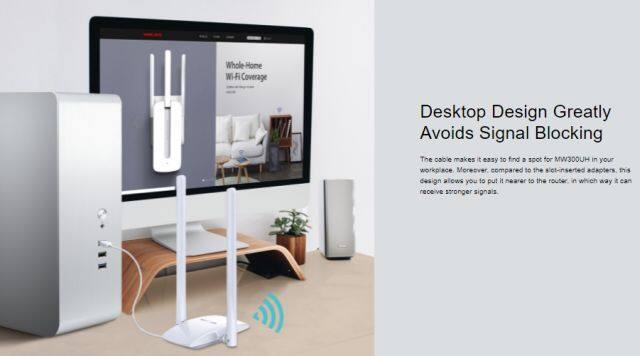

Desktop Design Greatly Avoids Signal Blocking
The cable makes it easy to find a spot for MW300UH in your workplace. Moreover, compared to the slot-inserted adapters, this design allows you to put it nearer to the router, in which way it can receive stronger signals.
.
Easy Setup
A friendly user interface on a CD for simple installation.
.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition. *To ensure compatibility, you may need to update the adapter’s drivers after an OS update.
.
.
.
SPECIFICATIONS
WIRELESS
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.400 – 2.4835 GHz
Transmission Power : ≤20 dBm (EIRP)
Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
WiFi Speeds:
- 11n: Up to 300 Mbps (Dynamic)
- 11g: Up to 54 Mbps (Dynamic)
- 11b: Up to 11 Mbps (Dynamic)
Reception Sensitivity:
- 300M: -68 dBm@10% PER
- 270M: -68 dBm@10% PER
- 144M: -71 dBm@10% PER
- 130M: -71 dBm@10% PER
- 54M: -74 dBm@10% PER
- 11M: -86 dBm@8% PER
- 6M: -90 dBm@10% PER
- 1M: -94 dBm@8% PER
HARDWARE
Dimensions:
- 4.46 × 2.51 × 0.85 in. (without antennas)
- 4.46 × 3.96 × 7.92 in. (with vertical antennas)
Interfaces: Micro USB 2.0
Antenna Type: External
OTHERS
Certifications: CE, ROHS
Package Contents: Wireless USB Adapter (MW300UH), Quick Installation Guide, Resource CD, USB Cable (Micro USB to USB A)
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90% Non-Condensing
Storage humidity: 5% ~ 90% Non-Condensing
System Requirements: Windows 10/8.1/8/7/XP (32/64 bit)
.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition. *To ensure compatibility, you may need to update the adapter’s drivers after an OS update.
.
